Databend ❤️ lakeFS: Incorporate Data Version Control into Your Analytics Workflow

PsiACENov 2, 2023
Databend ❤️ lakeFS: Incorporate Data Version Control into Your Analytics Workflow

Cloud computing provides cheap, elastic, shared storage services for data-centric applications, delivering obvious benefits for modern data processing workflows: massive data volumes, high concurrency, and high throughput. As a result, more and more use cases are migrating from legacy technology stacks to data lake architectures.

However, new challenges arise when we place our data lakes in the cloud:

  1. Legacy data warehouses and big data analytics technologies may not be designed specifically for the cloud and object storage. There could be performance and compatibility issues that require significant effort to maintain. How can we provide a truly modern, low-cost, high-performance, high-quality analytics service for the data lake?
  2. Data management requirements are strengthened, with higher demands on reproducibility of analysis results and shareability of data sources. How can we make data elastic and manageable, enabling data scientists, analysts, and engineers to collaborate seamlessly under a logically consistent view?

Where there are problems, solutions arise.

Databend builds a truly cloud-native and cross-cloud data warehouse on top of cloud object storage, designed with a serverless mindset to provide distributed, elastic, easy-to-manage high-performance query engines. It supports common structured and semi-structured data formats and integrates tightly with modern data technology stacks.

lakeFS provides solutions for shared, collaborative data processing, empowering object storage with Git-like capabilities to version control data and present logically consistent views. Meaningful branch names and commit messages can be embedded into data workflows, while unified solutions are offered for data and documents.

In this article, we combine both technologies to provide a simple, clear workshop to help you quickly build a modern data workflow.

Why You Need Databend

As data volumes explode, traditional data warehouses face huge challenges. They cannot efficiently store and process massive datasets, nor elastically scale compute and storage resources based on workloads, leading to high costs. Moreover, data processing is complex, requiring heavy investment into ETLs, while data rollback and version control are very difficult.

Databend aims to solve these pain points. It is an open-source, elastic, and workload-aware cloud data warehouse built in Rust, offering a cost-effective alternative to Snowflake. It's designed for complex analysis of the world's largest datasets.

  • Cloud-Friendly: Seamlessly integrates with various cloud storages like AWS S3, Azure Blob, Google Cloud, and more.
  • High Performance: Built in Rust, utilizing SIMD and vectorized processing for rapid analytics. See ClickBench.
  • Cost-Efficient Elasticity: Innovative design for separate scaling of storage and computation, optimizing both costs and performance.
  • Easy Data Management: Integrated data preprocessing during ingestion eliminates the need for external ETL tools.
  • Data Version Control: Offers Git-like multi-version storage, enabling easy data querying, cloning, and reverting from any point in time.
  • Rich Data Support: Handles diverse data formats and types, including JSON, CSV, Parquet, ARRAY, TUPLE, MAP, and JSON.
  • AI-Enhanced Analytics: Offers advanced analytics capabilities with integrated AI Functions.
  • Community-Driven: Benefit from a friendly, growing community that offers an easy-to-use platform for all your cloud analytics.

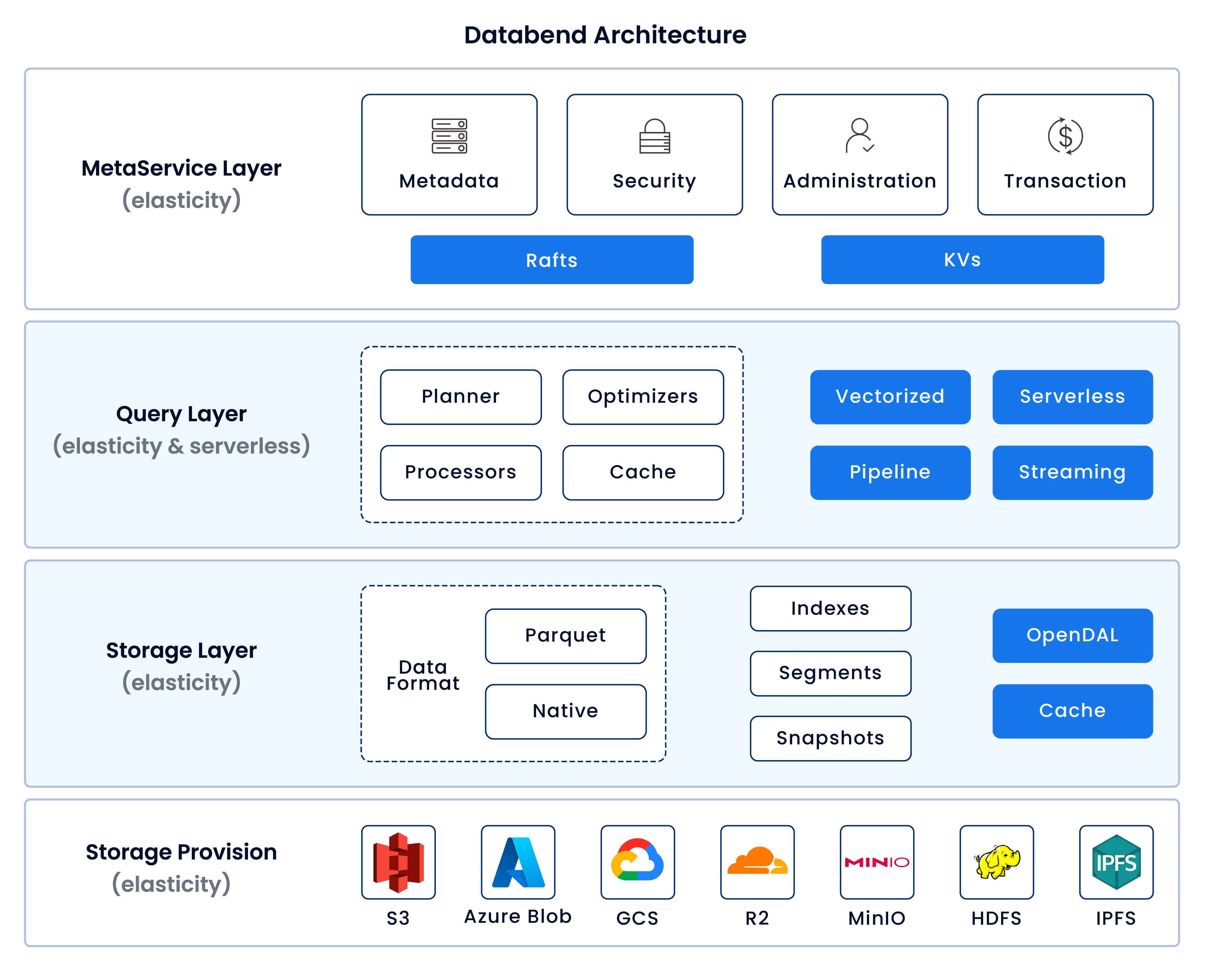

Image: Databend Architecture Diagram

Why You Need lakeFS

Due to the lack of atomicity, rollback, etc in object storage, data integrity is hard to guarantee, leading to lower quality and recoverability. To protect production data, isolated copies are often required for testing, wasting resources and making collaboration difficult.

When it comes to collaboration, Git comes to mind. But Git is not designed for data management. Aside from binary data handling issues, the file size limit of Git LFS also constrains its use cases.

lakeFS provides open source data version control for data lakes – branch, commit, merge, revert – just like using Git to manage code. By supporting zero-copy isolated dev/test environments, continuous validation, atomic rollback of bad data, reproducibility, etc, you can even easily try ETL workflows on production data without worries.

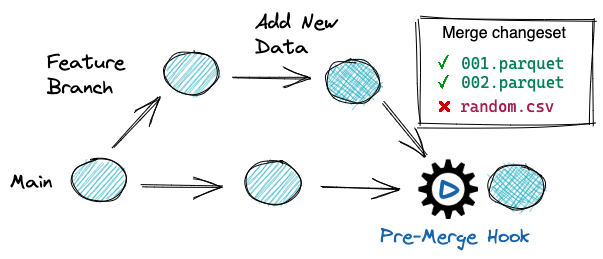

Image: Recommended lakeFS Data Workflow

The recommended data workflow diagram above is taken from https://lakefs.io/.

Workshop: Empower Your Analytics with lakeFS

In this workshop, we will create branches in lakeFS, and analyze and transform preset data with Databend.

We highly recommend trying Databend Cloud and lakeFS cloud to skip the time-consuming environment setup and dive right into data analysis and transformation.

Environment Setup

The environment will include lakeFS, MinIO for object storage, Jupyter, Spark and other common data science tools, in addition to Databend. Refer to this git repo for details.

Image: Experiment Environment Diagram

The diagram above depicts the experiment environment, taken from treeverse/lakeFS-samples.

Clone the Repository

git clone https://github.com/treeverse/lakeFS-samples.git
cd lakeFS-samples

Start the Full Stack Environment

docker compose --profile local-lakefs up

Once started, you can access lakeFS and MinIO with default configurations to observe data changes in later steps.

Observe the Data

The quickstart repo is precreated in lakeFS with some preset data during environment setup. Let's do some simple observations here.

If using your own deployed lakeFS + MinIO:

  • You may need to manually create the bucket in MinIO first.

Image: MinIO Buckets

  • Then create the repo in lakeFS, checking the option to populate sample data.

Image: lakeFS Repository Creation

lakeFS

Access lakeFS at

http://127.0.0.1:8000
with the Access and Secret Keys.

Open the

quickstart
repo. Some default data and a tutorial already exist.

Image: lakeFS Repo Contents

lakeFS data repos correspond closely to code repos like GitHub, with almost no learning curve.

lakes.parquet
contains preset data, while
lakes.source.md
in
data/
describes data provenance.
scripts/
contains validation scripts, with the full workflow under
_lakefs_actions/
like GitHub Actions.
README.md
is the Markdown source for the following tutorial, and
images/
contains all images used.

MinIO

Since we use MinIO for object storage in the experiment environment, a

quickstart
bucket can also be found in MinIO. This is determined by the
StorageNamespace
when creating the lakeFS repo.

Image: MinIO Bucket View

The dummy file is created when initializing the lakeFS repo to ensure we have write access to the bucket.

The

_lakefs/
directory only contains two files, created during import from S3 etc, to reference original locations of imported files.

New objects written through lakeFS will be under the

data/
directory.

Correspondence between Data

Open the

data/
directory. It's hard to match these files to the data in lakeFS.

Image: MinIO data/ Directory View

Let's switch back to lakeFS, click the gear icon beside a file, and select Object Info to easily find the mapping.

Image: lakeFS Object Info

Data Analysis and Transformation

We will deploy a Databend service, mount data from lakeFS via Stage, and analyze and transform it, replacing the lakes.parquet under the denmark-lakes branch with the transformed result.

Deploy Databend

Databend's storage engine also supports Time Travel, atomic rollback, etc. No need to worry about mistakes.

We will use a single node Databend with MinIO as storage backend. Overall deployment can follow the Databend Docs, with some details below:

  • Since MinIO is already deployed, just open

    http://127.0.0.1:9000
    and create a
    databend
    bucket.

  • Prepare log and meta data directories:

    sudo mkdir /var/log/databend
    sudo mkdir /var/lib/databend
    sudo chown -R $USER /var/log/databend
    sudo chown -R $USER /var/lib/databend
  • Edit

    databend-query.toml
    to avoid port conflicts:

    http_handler_port = 8088
  • Configure admin user per Docs | Configuring Admin Users. For simplicity:

    [[query.users]]
    name = "root"
    auth_type = "no_password"
  • Configure

    [storage]
    to use MinIO:

    [storage]
    type = "s3"

    [storage.s3]
    bucket = "databend"
    endpoint_url = "http://127.0.0.1:9000"
    access_key_id = "minioadmin"
    secret_access_key = "minioadmin"
    enable_virtual_host_style = false

Then start Databend normally:

./scripts/start.sh

We highly recommend the BendSQL client. Connect to Databend on port

8088
since
http_handler_port
changed.

bendsql -P 8088

Create Branch

lakeFS usage is similar to GitHub. Open the Branches page in the Web UI, and click Create Branch to make a denmark-lakes branch.

Image: lakeFS Create Branch

Create Stage

Databend can mount data directories in remote storage services via Stage. Since lakeFS provides S3 Gateway API, we can configure the connection as an S3 compatible service. Note the URL needs to be

s3://<repo>/<branch>
, and lakeFS's
ENDPOINT_URL
is on port
8000
.

CREATE STAGE lakefs_stage
URL='s3://quickstart/denmark-lakes/'
CONNECTION = (
REGION = 'auto'
ENDPOINT_URL = 'http://127.0.0.1:8000'
ACCESS_KEY_ID = 'AKIAIOSFOLKFSSAMPLES'
SECRET_ACCESS_KEY = 'wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY');

Run this SQL to filter for Parquet files in the directory:

LIST @lakefs_stage PATTERN = '.*[.]parquet';

Image: Databend List Stage

Since Databend already supports SELECT from Stage, we can query without importing:

SELECT * FROM @lakefs_stage/lakes.parquet LIMIT 5;

Image: Databend Select from Stage

Create Table and Query

Let's first import the data into Databend and do some simple queries before cleaning.

Databend has built-in Infer Schema to easily create tables from files:

CREATE TABLE lakes AS SELECT * FROM  @lakefs_stage/lakes.parquet;

Image: Databend Create Table

Now let's list the top 5 countries by number of lakes:

SELECT country, COUNT(*)
FROM lakes
GROUP BY country
ORDER BY COUNT(*) DESC
LIMIT 5;

Image: Databend Basic Query

Data Cleaning

Our goal here is to construct a small dataset containing only Danish lakes. This is easily achieved with a DELETE statement.

DELETE FROM lakes WHERE Country != 'Denmark';

Image: Databend Delete Data

Let's query again to check only Danish lakes remain:

SELECT country, COUNT(*)
FROM lakes
GROUP BY country
ORDER BY COUNT(*) DESC
LIMIT 5;

Image: Databend Cleaned Data

Write Result Back to lakeFS via PRESIGN

Here we will replace the Parquet file in the

denmark-lakes
branch with the cleaned data.

First export the data to the built-in anonymous Stage with

COPY INTO
:

COPY INTO @~ FROM lakes FILE_FORMAT = (TYPE = PARQUET);

List the result files in

@~
:

LIST @~ PATTERN = '.*[.]parquet'

Image: Databend Copy Into

Run

PRESIGN DOWNLOAD
to get the download URL for the result:

PRESIGN DOWNLOAD @~/<your-result-data-file>;

Image: Databend Presign Download

In a new terminal, download via

curl
:

curl -O '<your-presign-download-url>'

Get the upload URL with

PRESIGN UPLOAD
to replace
@lakefs_stage/lakes.parquet
:

PRESIGN UPLOAD @lakefs_stage/lakes.parquet;

Image: Databend Presign Upload

Upload via curl in terminal:

curl -X PUT -T <your-result-data-file> '<your-presign-upload-url>'

The file is now replaced with the cleaned data. List the Stage again to see changes:

LIST @lakefs_stage PATTERN = '.*[.]parquet';

Validate by querying again:

SELECT country, COUNT(*)
FROM @lakefs_stage/lakes.parquet
GROUP BY country
ORDER BY COUNT(*) DESC
LIMIT 5;

Image: Databend Transformed Data

Commit Changes

We will now commit the changes to lakeFS for persistence.

In the lakeFS Web UI, open Uncommitted Changes for the

denmark-lakes
branch.

Click Commit Changes, write a message, and confirm.

Image: lakeFS Commit Changes

Verify Original Data on Main Branch

The original data on

denmark-lakes
is replaced with the smaller cleaned dataset. Let's switch back to main and verify the original data is intact.

Create a Stage to mount the data file again:

CREATE STAGE lakefs_stage_check
URL='s3://quickstart/main/'
CONNECTION = (
REGION = 'auto'
ENDPOINT_URL = 'http://127.0.0.1:8000'
ACCESS_KEY_ID = 'AKIAIOSFOLKFSSAMPLES'
SECRET_ACCESS_KEY = 'wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY');

Query the lake data and list top countries again:

SELECT country, COUNT(*)
FROM @lakefs_stage_check/lakes.parquet
GROUP BY country
ORDER BY COUNT(*) DESC
LIMIT 5;

Image: Original Data Intact on Main

Everything on main remains unchanged. We obtained a cleaned Danish lakes dataset without affecting the original data.

Additional Challenges

In this workshop, we saw how to create isolated branches for data, perform simple queries and cleaning in Databend, and more.

For more challenges, try out branch merging and data rollback with the lakeFS tutorials, and Transforming Data on Load and Time Travel with the Databend tutorials.

We also welcome you to introduce Databend and lakeFS to production and validate with real workloads.
